Alat Uji Kecepatan Kendaraan - Speedometer Tester

Alat Uji Kecepatan Kendaraan

DESCRIPTION:

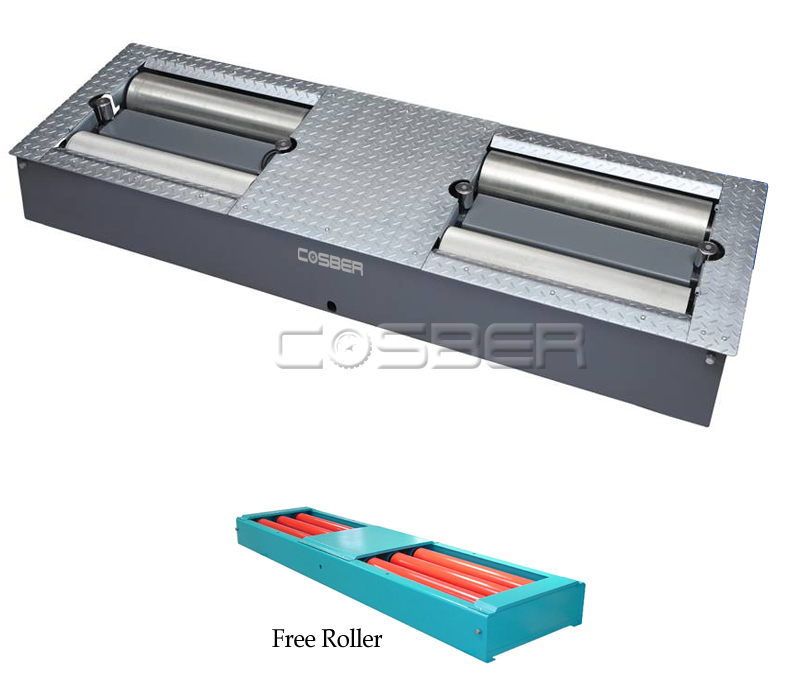

KCS Speedometer is designed to inspect the speed exactitude of a vehicle. Vehicle is able to running up to 120km/h on the roller of the tester, simulating the road condition without a real road test.


The vehicle speedometer tester is consisted of frame, pneumatic system, roller set, axle connector, tyre protector, sensor, signal generator, central lift and brake pad, etc


When testing the vehicle speedometer, drive the vehicle onto the tester and make sure the driving axle is on the rollers. The roller is driving by the wheels while accelerating the vehicle. The line velocity of roller is the same as that of vehicle wheels, which is the actual vehicle speed. The instant line velocity of roller will be measured and displayed by the instrument. By comparing the values of vehicle speedometer and the result of the instant speed, the deviation of the vehicle speedometer can be obtained.


Features:


  • Using of reinforced steel, strengthen and durable structure body
  • High adhesion coating paint for long working life
  • High precision sensor and high roundness of roller to ensurethe exactitude of result
  • Roller brake pad system make sure the exit of vehicle
  • 0-120km/h measurement range
  • Wireless remote control
  • Standard RS-232 connection port
  • Air Lift bar
  • 4 each Safety roller
  • Can be integreated with 2 more equipment by VIS Control System
  • Display Indicator (PC or LED indicator)
  • Mini printer (Built-in)




Specification :

Model
KCS-3  PN:5302005
KCS-10  PN:5304004
KCS-15  PN:5305004
KCS-18   PN:5306002
Max. Axle Load (kg)
Up to 4000
Up to 15000
Up to 18000
Up to 20000
Measurment Range (km/h)
0-120
0-120
0-120
0-120
Roller Dimensions (mm)
Ø190x700
Ø190x1100
Ø190x1200
Ø190x1200
Roller Axle Separation (mm)
380
380
405
405
Air Supply (MPa)
0.5-0.6
0.7-0.8
0.7-0.8
0.7-0.8
Power Supply
AC 220V, 50Hz, ground
AC 220V, 50Hz, ground
AC 220V, 50Hz, ground
AC 220V, 50Hz, ground
