Standard:

1. Hot-dip galvanized roller set
2. Low-wear corundum rollers 700mm
3. Adjustment screws for height adjustment
4. Wear-free, electronic measuring system
5. All car brake testers are prepared for upgrading the 4-point-weighing system
6. Car brake tester fits in all common pits
7. All car brake testers can be extended to test lane
8. Compact control box
9. Speed sensors
10. Manual / automatic mode, delayed automatic switch-on
11. Start-up monitoring, slip shut-off and shutdown after driving out from the brake teser
12. Optimized test procedure also suitable for electronic parking brakes
13. Electromagnetic engine brake as drive out support
14. Powerful 4kW motors (braking power: >8kN, test load at 50% deceleration: 4,0t)
15. Four-wheel drive kit, ideal for 4x4 vehicles
16. Lockable main switch
17. Large easy-to-read analog display with 2x255mm (300°) clocks
18. Analog display with 16-digit LED display
19. ASA-Livestream
20. Wall mounting for control box
21. Swivel arm for analog display
22. Fast delivery and installation

Optional Accessories :

1. Assembly frame
2. Assembly case
3. 4x4 manual & automatic
4. Remote control

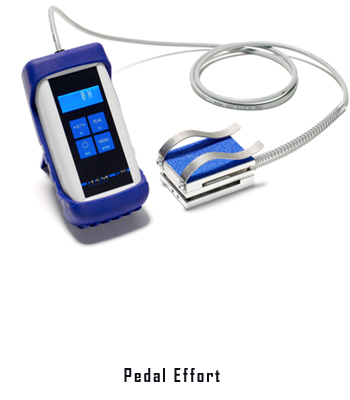

5. Pedal force sensor (radio version)
6. Pedal force sensor (cable version)
7. 4-point-weighing system
8. PC connection with PC visualization (standard car software)
9. Swiveling roller cover plates (set)
10. Motorcycle cover plate
11. Post for analog display or control box
12. Moveable PC trolley (empty) for customer PC
13. Universal mounting kit - height compensation for pits up to 30mm

Spesification :

1. Test width min: 800 mm
2. Coefficient of friction dry/wet: > 0.7 / > 0.6
3. Fuse protection: 3 x 32 A slow-blow
4. Motor power: 2 x 4,0 kW
5. Test width max: 2200 mm
6. Power supply: 3 x 400 V, N, PE 50 Hz
7. Brakeable performance max: 10,0 kN
8. Test speed: 5,1 km/h
9. Weight: 430 kg
10. Max. drive-over load: 4000 kg
11. Roller elevation: 25 mm
12. Height Rollerset: 240 mm
13. Width Rollerset: 2320 mm
14. Roller length: 700 mm
15. Roller diameter: 205 mm
16. Length Rollerset: 660 mm
17. Display cabinet Measuring range: 0 - 8 kN
18. Brake tester Roller set: Hot galvanized
19. Brake tester Test weight per axle (at 50% braking ratio): 4000 kg
