4 in 1 Combiline Testing

Combiline Testing 4 in 1

Alat Uji Kombinasi

Compact Testline 4 in 1 seri jalur inspeksi mobil: Roller Brake Tester, Weighing unit, Suspension dan Side slip tester telah banyak digunakan di bengkel-bengkel, terutama di gedung pengujian kendaraan bermotor serta perusahaan pabrikan kendaraan bermotor di Indonesia. ALat ini juga telah digunakan di beberapa Universitas Automotive dan Lembaga Ilmu Pengetahuan Indonesia (LIPI).

Menggunakan cara ilmiah, cepat, dan andal tidak hanya dapat memastikan keamanan kelaiakan kendaraan tersebut, tetapi juga mengurangi jumlah pengeluaran biaya untuk perbaikan yang sekaligus.

Perselisihan kualitas antar pabrik dapat secara efektif meningkatkan kualitas perbaikan dan kualitas layanan itu sendiri, sehingga meningkatkan manfaat ekonomi perusahaan dan membangun citra bengkel mobil yang baik.

Standar Kualitas

Dirancang oleh teknik Jerman, dilengkapi dengan loadcells berkualitas.

Kombinasi Alat

Kombinasi alat terdiri dari: Alat Uji Rem, Timbangan, Suspensi dan Kincup Roda semua itu dalam satu sistem program operasional.

Penggunaan Alat

4 in 1 Combiline, cocok sekali digunakan di Bengkel-bengkel, perusahaan automotive, Universitas dan Lembaga Ilmu lainnya yang berhubungan dengan Automotive itu sendiri.

Pilihan Alat

Cosber memberikan beberapa pilihan Kapasitas Beban atau Gabungan alat lainnya yang tentunya akan dikontrol oleh sistem software. Rangkaian produk ini memungkinkan banyak kombinasi untuk memenuhi permintaan pelanggan. Tambahan itu disiapkan untuk perpanjangan jalur uji lengkap.
Slide-1 Slide-2 Slide-3 Slide-4

Alat uji suspensi model C-ESC20 digunakan untuk mendeteksi berat roda kendaraan bermotor di bawah beban statis, tingkat penyerapan perangkat suspensi (shockabsorber) kendaraan suspensi independen, dan perangkat untuk mendeteksi perbedaan tingkat penyerapan koaksial kiri dan perangkat suspensi roda kanan, terutama untuk menguji kinerja perangkat pengurang getaran;

Combiline Testing :

  1. Main Equipment: Roller Brake & Weighing testing, suspension testing, sideslip testing
  2. Auxiliary equipment: vehicle speed testing, Sound level meter, headlight tester, exhaust gas tester, pedal force, wireless remote control

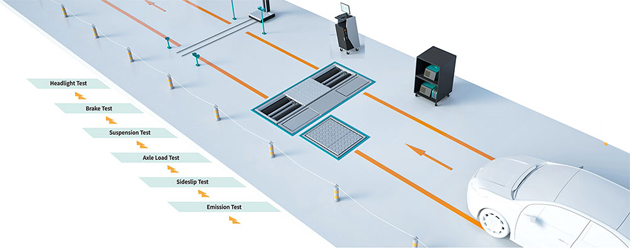

PC Cabinet Line in Inspection

Brake Features :

  1. High efficiency due to automatic test procedure
  2. Quick detection of all brake measurement data
  3. Guided information showed on the display
  4. Hot-dipped galvanized roller set frame
  5. Test speed 5,1km/h
  6. Test load up to 4t
  7. Electromagnetic motor brake as drive out support (as option)
  8. Roller cover plates (as option)
  9. Motorcycle cover plates (as option)
  10. Column or swivel arm mounted analog display (LED) (as option)
  11. 4 Wheel-Drive-Kit (as option)
  12. Extendable to test lane
  13. Robust radio remote control (as option)
  14. Roller driven-out program (air-lifter/motorlock system) (as option)
  15. Fits into all common foundations (for replacement business)
  16. Ground, column or wall mounted control box
  17. Standard RS-232 & LAN communication port

Suspension Features :

  1. The product implements the standard JT/T448-2001, and configures the EUSAMA measurement standard to meet the requirements of national and industry standards;
  2. Equipped with high-precision non-contact sensor, stable performance and simple maintenance;
  3. The interface is easy to operate, easy to learn and use, and the test results are displayed in charts and curves, which is convenient for comparing the situation before and after suspension maintenance;
  4. Industrial control computer test system, the system has overload protection function;
  5. Fast speed, high accuracy of test data, good repeatability, standard RS-232 serial communication interface;

Side Slip Features :

  1. Equipped with integrated structure, multi-roller support mechanism, dustproof and maintenance-free;
  2. Equipped with micro-processing high-precision displacement sensors, fully intelligent instruments, good reliability, easy operation and maintenance;
  3. Equipped with upper and lower bearing support mechanism, smooth sliding, equipped with bearing guide, roller support structure, small friction and free sliding;
  4. With analog/digital signal output interface, it is convenient to use in automatic detection system;
  5. Double slide (linkage or separate) and single slide structure, to meet a variety of testing requirements, standard RS-232 serial communication interface;
  6. It is optional to install a quick reset device, double front axle steering vehicle inspection, which meets the requirements of GB38900-2020 for comprehensive inspection equipment;

Optional Accessories :

  1. Assembly frame
  2. Assembly case
  3. 4x4 manual & automatic
  4. Remote control
  5. Pedal force sensor (radio version)
  6. Pedal force sensor (cable version)
  7. 4-point-weighing system
  8. PC connection with PC visualization (standard car software)
  9. Swiveling roller cover plates (set)
  10. Motorcycle cover plate
  11. Post for analog display or control box
  12. Moveable PC trolley (empty) for customer PC
  13. Universal mounting kit - height compensation for pits up to 30mm

Accessories

  1. Remote control
  2. Control box for Electric
  3. Stand Control Box/Indicator
Stand of Control Control Panel Wall Remote Control

Spesification :

Request...
